30 October, 2013

MENTOR GRAPHICS AT ARM TECHCON

This week ARM® TechCon® 2013 is being held at the Santa Clara Convention Center from Tuesday October 29 through Thursday October 31st, but don’t worry, there’s nothing to be scared about.  The theme is “Where Intelligence Counts”, and in fact as a platinum sponsor of the event, Mentor Graphics is excited to present no less than ten technical and training sessions about using intelligent technology to design and verify ARM-based designs.

My personal favorite is scheduled for Halloween Day at 1:30pm, where I’ll tell you about a trick that Altera used to shave several months off their schedule, while verifying the functionality and performance of an ARM AXI™ fabric interconnect subsystem.  And the real treat is that they achieved first silicon success as well.  In keeping with the event’s theme, they used something called “intelligent” testbench automation.

And whether you’re designing multi-core designs with AXI fabrics, wireless designs with AMBA® 4 ACE™ extensions, or even enterprise computing systems with ARM’s latest AMBA® 5 CHI™ architecture, these sessions show you how to take advantage of the very latest simulation and formal technology to verify SoC connectivity, ensure correct interconnect functional operation, and even analyze on-chip network performance.

On Tuesday at 10:30am, Gordon Allan described how an intelligent performance analysis solution can leverage the power of an SQL database to analyze and verify interconnect performance in ways that traditional verification techniques cannot.  He showed a wide range of dynamic visual representations produced by SoC regressions that can be quickly and easily manipulated by engineers to verify performance to avoid expensive overdesign.

Right after Gordon’s session, Ping Yeung discussed using intelligent formal verification to automate SoC connectivity, overcoming observability and controllability challenges faced by simulation-only solutions.  Formal verification can examine all possible scenarios exhaustively, verifying on-chip bus connectivity, pin multiplexing of constrained interfaces, connectivity of clock and reset signals, as well as power control and scan test signal connectivity.

On Wednesday, Mark Peryer shows how to verify AMBA interconnect performance using intelligent database analysis and intelligent testbench automation for traffic scenario generation.  These techniques enable automatic testbench instrumentation for configurable ARM-based interconnect subsystems, as well as highly-efficient dense, medium, sparse, and varied bus traffic generation that covers even the most difficult to achieve corner-case conditions.

And finally also on Halloween, Andy Meyer offers an intelligent workshop for those that are designing high performance systems with hierarchical and distributed caches, using either ARM’s AMBA 5 CHI architecture or ARM’s AMBA 4 ACE architecture.  He’ll cover topics including how caching works, how to improve caching performance, and how to verify cache coherency.

For more information about these sessions, be sure to visit the ARM TechCon program website.  Or if you miss any of them, and would like to learn about how this intelligent technology can help you verify your ARM designs, don’t be afraid to email me at mark_olen@mentor.com.   Happy Halloween!

, , , , , , , , , ,

19 August, 2013

Verification Techniques & Technologies Adoption Trends

This blog is a continuation of a series of blogs that present the highlights from the 2012 Wilson Research Group Functional Verification Study (for background on the study, click here).

In my previous blog (Part 9 click here), I focused on some of the 2012 Wilson Research Group findings related to design and verification language and library trends. In this blog, I present verification techniques and technologies adoption trends, as identified by the 2012 Wilson Research Group study.

An interesting trend we are starting to see is that the electronic industry is maturing its functional verification processes, whether they are targeting their designs at IC/ASIC or FPGA implementations. This blog provides data to support this claim. An interesting question you might ask is, “What is driving this trend?” In some of my earlier blogs (click here for Part 1 and Part 2) I showed an that design complexity is increasing in terms design sizes and number of embedded processors. In addition, I’ve presented trend data that showed an increase in total project time and effort spent in verification (click here for Part 5 and Part 6). My belief is that the industry is being forced to mature its functional verification processes to address increasing complexity and effort.

Simulation Techniques Adoption Trends

Let’s begin by comparing  non-FPGA adoption trends related to various simulation techniques from the 2007 Far West Research study  (in blue) with the 2012 Wilson Research Group study  (in green), as shown in Figure 1.

Figure 1. Simulation-based technique adoption trends for non-FPGA designs

You can see that the study finds the industry increasing its adoption of various functional verification techniques for non-FPGA targeted designs. Clearly the industry is maturing its processes as I previously claimed.

For example, in 2007, the Far West Research Group found that only 48 percent of the industry performed code coverage. This surprised me. After all, HDL-based code coverage is a technology that has been around since the early 1990’s. However, I did informally verify the 2007 results through numerous customer visits and discussions. In 2012, we see that the industry adoption of code coverage has increased to 70 percent.

In 2007, the Far West Research Group study found that 37 percent of the industry had adopted assertions for use in simulation. In 2012, we find that industry adoption of assertions had increased to 63 percent. I believe that the maturing of the various assertion language standards has contributed to this increased adoption.

In 2007, the Far West Research Group study found that 40 percent of the industry had adopted functional coverage for use in simulation. In 2010, the industry adoption of functional coverage had increased to 66 percent. Part of this increase in functional coverage adoption has been driven by the increased adoption of constrained-random simulation, since you really can’t effectively do constrained-random simulation without doing functional coverage.

Now let’s look at  FPGA adoption trends related to various simulation techniques from the 2010 Far West Research study  (in pink) with the 2012 Wilson Research Group study  (in red).

Figure 2. Simulation-based technique adoption trends for non-FPGA designs

Again, you can clearly see that the industry is increasing its adoption of various functional verification techniques for FPGA targeted designs. This past year I have spent a significant amount of time in discussions with FPGA project managers around the world. During these discussions, most mangers mention the drive to improve verification process within their projects due to  rising complexity of this class of designs. The Wilson Research Group data supports these claims.

In fact, Figure 3 illustrates this maturing trend in the FPGA space, where we saw a 15 percent increase in the adoption of RTL simulation and an 8.5 percent increase in the adoption of code coverage. For complex FPGA designs, the traditional approach of “burn and churn” and debug in the lab is no longer a viable option. Nonetheless, it is still somewhat alarming that 31 percent of the FPGA study participants work on projects that perform no RTL simulation.

Figure 3. FPGA projects maturing their verification processes

Signoff Criteria Trends

We saw earlier in this blog the increased adoption of coverage techniques in the industry. Coverage has become a major component of a project’s verification signoff criteria. In Figure 4, we see how coverage has increased in importance in verification signoff criteria within the past five years, while other decision attributes have declined in terms of importance.

Figure 4. Non-FPGA functional verification signoff criteria trends

We see the same trends for FPGA designs, as shown in Figure 5.

Figure 5. FPGA functional verification signoff criteria trends

In my next blog (click here), I plan to continue the discussion related to adoption of various verification technologies and techniques as identified by the 2012 Wilson Research Group study.

, , , , , , , , , ,

5 August, 2013

Language and Library Trends

This blog is a continuation of a series of blogs that present the highlights from the 2012 Wilson Research Group Functional Verification Study (for a background on the study, click here).

In my previous blog (Part 7 click here), I focused on some of the 2012 Wilson Research Group findings related to testbench characteristics and simulation strategies. In this blog, I present design and verification language trends, as identified by the Wilson Research Group study.

You might note that for some of the language and library data I present, the percentage sums to more than one hundred percent. The reason for this is that some participants’ projects use multiple languages.

RTL Design Languages

Let’s begin by examining the languages used for RTL design. Figure 1 shows the trends in terms of languages used for design, by comparing the 2007 Far West Research study (in gray), the 2010 Wilson Research Group study (in blue), the 2012 Wilson Research Group study (in green), as well as the projected design language adoption trends within the next twelve months (in purple) as identified by the study participants. Note that the design language adoption is declining for most of the languages with the exception of SystemVerilog whose adoption continues to increase.

Also, it’s important to note that this study focused on languages used for RTL design. We have conducted a few informal studies related to languages used for architectural modeling—and it’s not too big of a surprise that we see increased adoption of C/C++ and SystemC in that space. However, since those studies have (thus far) been informal and not as rigorously executed as the Wilson Research Group study, I have decided to withhold that data until a more formal blind study can be executed related to architectural modeling and virtual prototyping.

Figure 1. Trends in languages used for Non-FPGA design

Let’s now look at the languages used specifically for FPGA RTL design. Figure 2 shows the trends in terms of languages used for FPGA design, by comparing the 2012 Wilson Research Group study (in red) with the projected design language adoption trends within the next twelve months (in purple).

Figure 2. Languages used for Non-FPGA design

It’s not too big of a surprise that VHDL is the predominant language used for FPGA RTL design, although we are starting to see increased interest in SystemVerilog.

Verification Languages

Next, let’s look at the languages used to verify Non-FPGA designs (that is, languages used to create simulation testbenches). Figure 3 shows the trends in terms of languages used to create simulation testbenches by comparing the 2007 Far West Research study (in gray), the 2010 Wilson Research Group study (in blue), and the 2012 Wilson Research Group study (in green).

Figure 3. Trends in languages used in verification to create Non-FPGA simulation testbenches

The study revealed that verification language adoption is declining for most of the languages with the exception of SystemVerilog whose adoption is increasing. In fact, SystemVerilog adoption increased by 8.3 percent between 2010 and 2012.

Figure 4 provides a different analysis of the data by partitioning the projects by design size, and then calculating the adoption of SystemVerilog for creating testbenches by size. The design size partitions are represented as: less than 5M gates, 5M to 20M gates, and greater than 20M gates. Obviously, we find that the larger the design size, the greater the adoption of SystemVerilog for creating testbenches. Yet, probably the most interesting observation we can make from examining Figure 4 is related to smaller designs that are less than 5M gates. Here we see that 58.8 percent of the industry has adopted SystemVerilog for verification. In other words, it is safe to say that SystemVerilog for verification has become mainstream today and not just limited to early adopters or leading-edge design projects.

Figure 4. SystemVerilog (for verification) adoption by design size

Let’s now look at the languages used specifically for FPGA RTL design. Figure 5 shows the trends in terms of languages used for FPGA design, by comparing the 2012 Wilson Research Group study (in red) with the projected design language adoption trends within the next twelve months (in purple).

Figure 5. Trends in languages used in verification to create FPGA simulation testbenches

In my next blog (click here), I’ll continue the discussion on design and verification language trends as revealed by the 2012 Wilson Research Group Functional Verification Study.

, , , , , , , , , , , , , , , , , ,

26 July, 2013

You don’t need a graphic like the one below to know that multi-core SoC designs are here to stay.  This one happens to be based on ARM’s AMBA 4 ACE architecture which is particularly effective for mobile design applications, offering an optimized mix of high performance processing and low power consumption.  But with software’s increasing role in overall design functionality, verification engineers are now tasked with verifying not just proper HW functionality, but proper HW functionality under control of application SW.  So how do you verify HW/SW interactions during system level verification?

 For most verification teams, the current alternatives are like choosing between a walk through the desert or drinking from a fire hose.  In the desert, you can manually write test programs in C, compile them and load them into system memory, and then initialize the embedded processors and execute the programs.  Seems straightforward, but now try it for multiple embedded cores and make sure you confirm your power up sequence and optimal low power management (remember, we’re testing a mobile market design), correct memory mapping, peripheral connectivity, mode selection, and basically anything that your design is intended to do before its battery runs out.  You can get lost pretty quickly.  Eventually you remember that you weren’t hired to write multi-threaded software programs, but that there’s an entire staff of software developers down the hall who were.  So you boot your design’s operating system, load the SW drivers, and run the design’s target application programs, and fully verify that all’s well between the HW and the SW at the system level.

But here comes the fire hose.  By this time, you’ve moved from your RTL simulator to an emulator, because just simulating Linux booting up takes weeks to months.  But what happens when your emulator runs into a system level failure after billions of clock cycles and several days of emulation?  There’s no way to avoid full HW/SW verification at the system level, but wouldn’t it be nice to find most of the HW/SW interaction bugs earlier in the process, when they’re easier to debug?

 There’s an easier way to bridge the gap between the desert and the fire hose.  It’s called “intelligent Software Driven Verification”.  iSDV automates the generation of embedded C test programs, for multi-core processor execution.  These tests generate thousands of high-value processor instructions that verify HW/SW interactions.  Bugs discovered take much less time to debug, and the embedded C test programs can run in both simulation and emulation environments, easing the transition from one to the other.Check out the on-line web seminar at the link below to learn about using intelligent Software Driven Verification” as a way to uncover the majority of your system-level design bugs after RTL level simulation, but before full system level emulation.

http://www.mentor.com/products/fv/multimedia/automating-software-driven-hardware-verification-with-questa-infact

, , , , , ,

22 July, 2013

Effort Spent On Verification (Continued)

This blog is a continuation of a series of blogs that present the highlights from the 2012 Wilson Research Group Functional Verification Study (for a background on the study, click here).

In my previous blog (click here), I focused on the controversial topic of effort spent in verification. This blog continues that discussion.

I stated in my previous blog that I don’t believe there is a simple answer to the question, “how much effort was spent on verification in your last project?” I believe that it is necessary to look at multiple data points to truly get a sense of the real effort involved in verification today. So, let’s look at a few additional findings from the study.

Time designers spend in verification

It’s important to note that verification engineers are not the only project members involved in functional verification. Design engineers spend a significant amount of their time in verification too, as shown in Figure 1.

Figure 1. Average (mean) time design engineers spend in design vs. verification

In fact, you might note that design engineers now actually spend more time doing verification than design. This time expenditure has shifted in the last five years. In fact, the amount of time that design engineers spend doing verification has increased by 15 percent since 2007, while the amount of time they spend doing design has decreased by about 13 percent.

The designer’s involvement in verification ranges from:

  • Small sandbox testing to explore various aspects of the implementation
  • Full functional testing of IP blocks and SoC integration
  • Debugging verification problems identified by a separate verification team

Percentage of time verification engineers spends in various task

Next, let’s look at the mean time verification engineers spend in performing various tasks related to their specific project. You might note that verification engineers spend most of their time in debugging. Ideally, if all the tasks were optimized, then you would expect this. Yet, unfortunately, the time spent in debugging can vary significantly from project-to-project, which presents scheduling challenges for managers during a project’s verification planning process.

Figure 2. Average (mean) time verification engineers spend in various task

Number of formal analysis, FPGA prototyping, and emulation Engineers

Functional verification is not limited to simulation-based techniques. Hence, it’s important to gather data related to other functional verification techniques, such as the number of verification engineers involved in formal analysis, FPGA prototyping, and emulation.

Figure 3 presents the trends in terms of the number of verification engineers focused on formal analysis on a project. In 2007, the mean number of verification engineers focused on formal analysis on a project was 1.68, while in 2010 the mean number increased to 1.84. For some reason, we did see a slight decreased in the mean number of verification engineers who focus on formal in 2012. Regardless, the curve is remarkably consistent for the past five years.

Figure 3. Median number of verification engineers focused on formal analysis

Although FPGA prototyping is a common technique used to create platforms for software development, it is also sometimes used by projects for SoC integration verification and system validation. Figure 4 presents the trends in terms of the number of verification engineers focused on FPGA prototyping. In 2007, the mean number of verification engineers focused on FPGA prototyping on a project was 1.42, while in 2010 the mean number was 1.86. In 2012 we saw a slight decline in mean number of verification engineers focused on FPGA prototyping. However, the curve has been remarkably similar for the past five years.

Figure 4. Number of verification engineers focused on FPGA prototyping

Figure 5 presents the trends in terms of the number of verification engineers focused on hardware-assisted acceleration and emulation. In 2007, the mean number of verification engineers focused on hardware-assisted acceleration and emulation on a project was 1.31, while in 2010 the mean number was 1.86. In 2012, we see a slight decrease in the mean number of verification engineers who focus on hardware-assisted acceleration and emulation.

Figure 5. Number of verification engineers focused on emulation

Again, noticed how the curve has been consistent over the past five years. In other words, we are not seeing any big trends in terms of increased verification engineers focused predominately on formal, FPGA prototyping, and hardware-assisted acceleration and emulation. This trend was certainly not true for general verification engineers who focus on simulation-based techniques, as I presented in my previous blog, where we saw a 75 percent increase in the peak number verification engineers involved on a project within the past five years.

A few more thoughts on verification effort

So, can I conclusively state that 70 percent of a project’s effort is spent in verification today as some people have claimed? No. In fact, even after reviewing the data on different aspects of today’s verification process, I would still find it difficult to state quantitatively what the effort is. Yet, the data that I’ve presented so far seems to indicate that the effort (whatever it is) is increasing. And there is still additional data relevant to the verification effort discussion that I plan to present in upcoming blogs. However, in my next blog (click here), I shift the discussion from verification effort, and focus on some of the 2012 Wilson Research Group findings related to testbench characteristics and simulation strategies.

, , , , , , , , ,

15 July, 2013



Effort Spent in Verification

This blog is a continuation of a series of blogs that present the highlights from the 2012 Wilson Research Group Functional Verification Study (click here). In my previous blog (click here), I focused on design and verification reuse trends. In this blog, I focus on the controversial topic of the amount of effort spent in verification.

Directly asking study participants how much effort they spend in verification will not work. The reason is that it’s hard to find a paper or article on verification that doesn’t start with the phrase: “Seventy percent of a project’s effort is spent in verification…” In other words, the industry is already biased to respond with this effort value. Yet, there are really no creditable references to quantify this value.

I don’t believe that there is a simple answer to the question, “How much effort was spent on verification in your last project?” In fact, I believe that it is necessary to look at multiple data points derived from multiple questions to truly get a sense of effort spent in verification. And that’s what we did in our functional verification study.

Total Project Time Spent in Verification

To try to assess the effort spent in verification, let’s begin by looking at one data point, which is the total project time spent in verification. Figure 1 shows the trends in total percentage of project time spent in verification for non-FPGA designs by comparing the 2007 Far West Research study (in gray), the 2010 Wilson Research Group study (in blue), and the 2012 Wilson Research Group study (in green).

Figure 1. Percentage of total project time spent in verification for Non-FPGA designs

The graph clearly shows that there are some projects that spend a significant percentage of project time in verification (>80%), while other projects spend significantly less time. Notice that in 2007, the average (mean) project time spent in verification was 49 percent, while the average increased to 56 percent in 2010 and remained the same in 2012.

Figure 2 shows the trends in total percentage of project time spent in verification for FPGA designs by comparing the 2010 Wilson Research Group study (in pink) and the 2012 Wilson Research Group study (in red).



Figure 2. Percentage of total project time spent in verification for FPGA designs

You might note that many FPGA projects tend to spend less time in verification than non-FPGA projects. Traditionally, the strategy for FPGA designs has been to get to the lab as soon as possible and debug issues in the lab. In a future blog I’ll show data that indicates this strategy does not necessarily yield good results in terms of meeting project schedule or quality objectives.

Peak Number of Design and Verification Engineers

Next, let’s look at another data point, the average (mean) peak number of engineers involved on a project. Figure 4 compares the growth in recent years for the average peak number of design engineers (in light green) and verification engineers (in dark green) working on a typical non-FPGA project.



Figure 3. Peak number of design vs. verification engineer trends for non-FPGA projects

Note that there has not been a significant increase in design engineers in the past five years, although design sizes have continued to increase at a Moore’s Law rate. This is partially due to increased adoption of internal and external IP (as I discussed in my previous blog) as well as continued productivity improvements due to automation.

However, the mean peak number of verification engineers working on non-FPGA projects has increased by 75% within the last five years. In fact, today we see (on average) a one-to-one ratio for a project’s peak number of design and verification engineers.

Figure 4 provides a different analysis of the data by partitioning the projects by design sizes, and then calculating the mean peak number of verification engineers by project design. The design size partitions are represented as: less than 5M gates, 5M to 20M gates, and greater than 20M gates.



Figure 4. Mean peak number of verification engineer trends by design size for non-FPGA projects

Figure 5 shows the average (mean) peak number of design engineers (in red) and verification engineers (in pink) working on a typical FPGA project.



Figure 5. Peak number of design vs. verification engineer trends for non-FPGA projects

Also, note that the ratio of design engineers versus verification engineers hasn’t changed within the last two years for FPGA projects. Typically, design engineers on FPGA projects are responsible for verification too, and you will find many projects that do not have verification engineers. This trend, however, will likely change as FPGA designs become more complex. We are already seeing this on some very complex FPGA projects today.

In my next blog (click here), I’ll continue the discussion on effort spent in verification as revealed by the 2012 Wilson Research Group Functional Verification Study.

, , , , , ,

8 July, 2013

Reuse Trends

This blog is a continuation of a series of blogs that present the highlights from the 2012 Wilson Research Group Functional Verification Study (click here).  In my previous blog (click here), I focused on clocking and power management.  In this blog, I focus on design and verification reuse trends. As I mentioned in my prologue blog to this series (click here), one interesting trend that emerged from the study is that reuse adoption is increasing.

Design Composition Trends

Figure 1 shows the mean design composition trends graph, which compares the 2007 Far West Research study (in blue) with the 2012 Wilson Research Group study (in green).

New logic development has decreased by 34 percent in the last five years, while external IP adoption has increased by 69 percent. This increase in adoption has been driven by IP demand required for SoC development, such as embedded processor cores and standard interface cores.

Figure 1. Mean design composition trends

Figure 2 compares today’s design composition between FPGA designs (in red) with Non-FPGA designs (in green). Currently, more new designs (i.e., new RTL) are created for FPGA versus Non-FPGA designs. However, as FPGAs get larger in terms of transistors, reuse will become even more important to address the design productivity gap that could arise between the number of transistors that can be manufactured on an FPGA and the amount of time to design for a given project.

Figure 2. Mean composition comparison between FPGA and Non-FPGA designs.



Verification Testbench Composition Trends

Figure 3 shows the mean testbench composition trends graph, which compares the 2007 Far West Research study (in blue) with the 2012 Wilson Research Group study (in green).

Notice that new verification code development has decreased by 24 percent in the last three years, while external verification IP adoption has increased by 138 percent. This increase has been driven by the emergence of standard on-chip and off-chip bus architectures.

Figure 3. Mean testbench composition trends

Figure 4 compares today’s testbench composition between FPGA (in red) and Non-FPGA (in green) designs. Again, we see that more new code is written today for FPGA than Non-FPGA testbenches, and I expect this will change over time to be more in line with Non-FPGA designs.

Figure 4. Mean testbench composition comparison between FPGA and Non-FPGA designs

In my next blog (click here), I’ll shift my focus from design trends to project resource trends. I’ll also present our findings on the project effort spent in verification.

, , , ,

28 June, 2013

Clocking and Power Trends

In Part 2 of this series of blogs, I continued the discussion focused on design trends (click here) as identified by the 2012 Wilson Research Group Functional Verification Study (click here). In this blog, I continue presenting the study findings related to design trends, with a focus on clocking and power trends.

Independent Asynchronous Clock Domains

Figure 1 shows the percentage of designs developed today by the number of independent asynchronous clock domains. The asynchronous clock domain data for FPGA designs is shown in red, while the data for the non-FPGA designs is shown in green.



Figure 1. Number of independent asynchronous clock domains

Figure 2 shows the trends in number of independent asynchronous clock domains for non-FPGA designs. The comparison includes the 2002 Collett study (in dark green), the 2007 Far West Research study (in gray), the 2010 Wilson Research Group study (in blue), and the 2010 Wilson Research Group study (in green).

Figure 2. Trends: Number of independent asynchronous clock domain

It’s interesting to note that, although the number of clock domains is increasing over time, the sweet spot in terms of number of independent asynchronous clock domains seems to remain between 2 and 20, and it hasn’t changed significantly in the past ten years.

Figure 3 provides a different analysis of the data by partitioning the projects by design sizes, and then calculating the mean number of independent asynchronous clock domains by project design. The design size partitions are represented as: less than 5M gates, 5M to 20M gates, and greater than 20M gates.

Figure 3. Mean number of independent clock domains by design size

Power Management

Today, we see that about 67 percent of design projects actively manage power with a wide variety of techniques, ranging from simple clock-gating, to complex hypervisor/OS-controlled power management schemes. We decided for the 2012 Wilson Research Group study that we wanted to take a closer look at power management related to functional verification. Hence, I can share some interesting results with you here. However, since this aspect of functional verification has never been studied in previous surveys, I will not be able to show trends. Our goal is to carry these same questions forward in our future studies so that we can identify trends.

For these, Figure 4 shows the various aspects of their power-managed design that they verify (for those 67 percent of design projects that actively manage power).

Figure 4. Aspects of power-managed design that are verified

In our study, we asked what percentage of simulation was power-aware (that is, verifying some functional aspect of the power-management scheme), and the results are shown in Figure 5. We were surprised to learn that about 10 percent of all designs that actively manage power perform no power-aware simulation to verify the power management scheme.

Figure 5. Percentage of simulation that verified some aspect of power management

In addition, we asked what percent of verification resources were focused on power management verification, and the results are shown in Figure 6. You will note that the curve is very similar to the percentage of total simulations that were power-aware, which you would expect. Again, we see that about 10 percent of the projects that actively manage power provide no verification resources to verify the power-management scheme.



Figure 6. Percentage of verification resources focused on power management

Figure 7 shows the different types of simulation-based functional testing approaches that are currently applied to verifying power management. It’s not a surprise that most power-aware simulation is based on directed-testing approaches since often (but not always) power-aware simulations are performed at the SoC integration level where directed testing is common.



Figure 7. Percentage of simulation that verified some aspect of power management

Since the power intent cannot be directly described in an RTL model, alternative supporting notations have recently emerged to capture the power intent. In the 2012 study, we wanted to get a sense of where the industry stands in adopting the notation. For projects that actively manage power, Figure 8 shows the various notations that have been adopted to describe the power intent. Some projects are actively using multiple standards (such as different versions of UPF or a combination of CPF and UPF). That’s why the adoption results do not sum to 100 percent.



Figure 8. Notation used to describe power intent

In my next blog (click here), I’ll present data on design and verification reuse trends.

, , , , , , , , , ,

26 June, 2013

Design Trends (Continued)

In Part 1 of this series of blogs, I focused on design trends (click here) as identified by the 2012 Wilson Research Group Functional Verification Study (click here). In this blog, I continue presenting the study findings related to design trends, with a focus on embedded processor, DSP, and on-chip bussing trends.

Embedded Processors

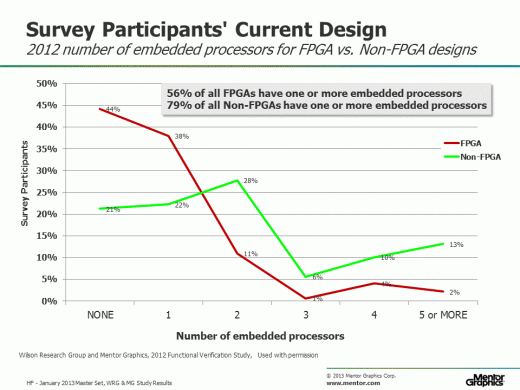

In Figure 1, we see the percentage of today’s designs by the number of embedded processor cores. It’s interesting to note that 79 percent of all non-FPGA designs (in green) contain one or more embedded processors and could be classified as an SoC, which are inherently more difficult to verify than designs without embedded processors. Also note that 55 percent of all FPGA designs (in red) contain one or more embedded processors.

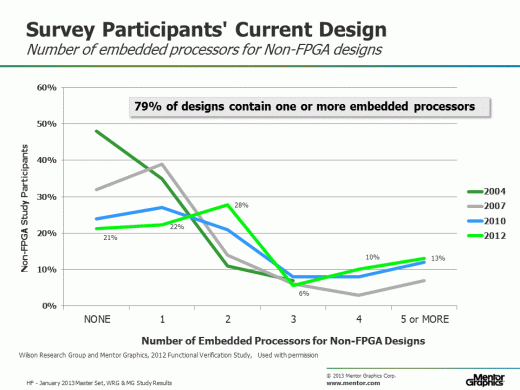

Figure 1. Number of embedded processor cores

Figure 2 shows the trends in terms of the number of embedded processor cores for non-FPGA designs. The comparison includes the 2004 Collett study (in dark green), the 2007 Far West Research study (in gray), and the 2010 Wilson Research Group study (in green).

Figure 2. Trends: Number of embedded processor cores

For reference, between the 2010 and 2012 Wilson Research Group study, we did not see a significant change in the number of embedded processors for FPGA designs. The results look essentially the same as the red curve in Figure 1.

Another way to look at the data is to calculate the mean number of embedded processors that are being designed in by SoC projects around the world. In Figure 3, you can see the continual rise in the mean number of embedded processor cores, where the mean was about 1.06 in 2004 (in dark green). This mean increased in 2007(in gray) to 1.46. Then, it increased again in 2010 (in blue) to 2.14. Today (in green) the mean number of embedded processors is 2.25. Of course, this calculation represents the industry average—where some projects are creating designs with many embedded processors, while other projects are creating designs with few or none.

It’s also important to note here that the analysis is per project, and it does not represent the number of embedded processors in terms of silicon volume (i.e., production). Some projects might be creating designs that result in high volume, while other projects are creating designs with low volume.

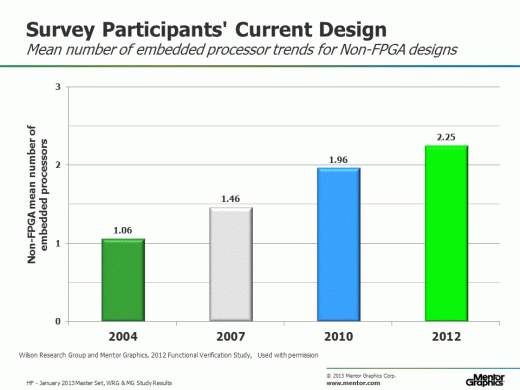

Figure 3. Trends: Mean number of embedded processor core

Another interesting way to look at the data is to partition it into design sizes (for example, less than 5M gates, 5M to 20M gates, greater than 20M gates), and then calculate the mean number of embedded processors by design size. The results are shown in Figure 4, and as you would expect, the larger the design, the more embedded processor cores.

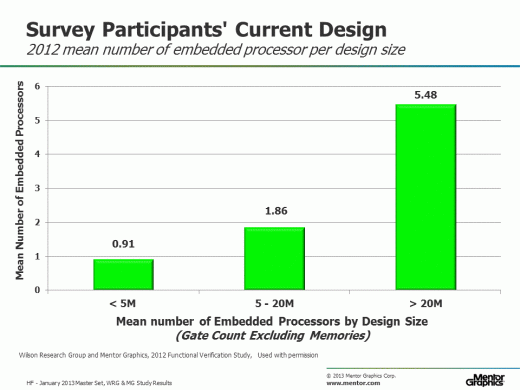

Figure 4. Non-FPGA mean embedded processor cores by design size

Platform-based SoC design approaches (i.e., designs containing multiple embedded processor cores with lots of third-party and internally developed IP) have driven the demand for common bus architectures. In Figure 5 we see the percentage of today’s designs by the type of on-chip bus architecture for both FPGA (in red) and non-FPGA (in green) designs.

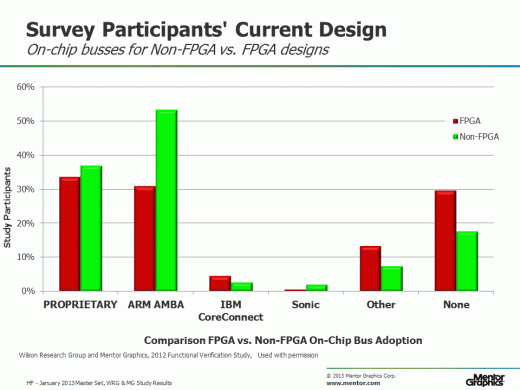

Figure 5. On-chip bus architecture adoption

Figure 6 shows the trends in terms of on-chip bus architecture adoption for Non-FPGA designs. The comparison includes the 2007 Far West Research study (in gray), the 2010 Wilson Research Group study (in blue), and the 2012 Wilson Research Group study (in green). Note that there was about a 250 percent reported increase in Non-FPGA design projects using the ARM AMBA bus architecture between the years 2007 and ??.

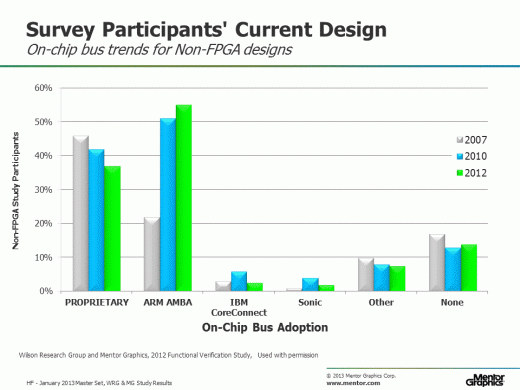

Figure 6. Trends: Non-FPGA on-chip bus architecture adoption

Figure 7 shows the trends in terms of on-chip bus architecture adoption for FPGA designs. The comparison includes the 2010 Wilson Research Group study (in pink), and the 2012 Wilson Research Group study (in red). Note that there was about a 163 percent increase in FPGA design projects using the ARM AMBA bus architecture between the years 2010 and 2012.

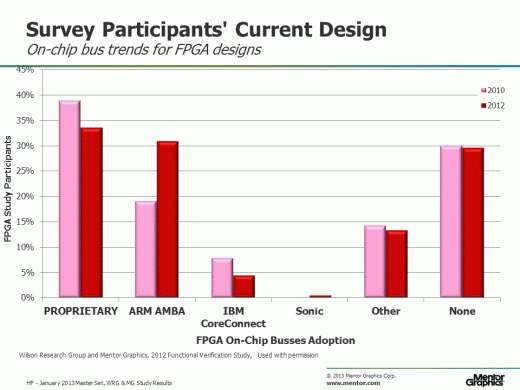

Figure 7. FPGA on-chip bus architecture adoption trends

In Figure 8 we see the percentage of today’s designs by the number of embedded DSP cores for both FPGA designs (in red) and non-FPGA designs (in green).

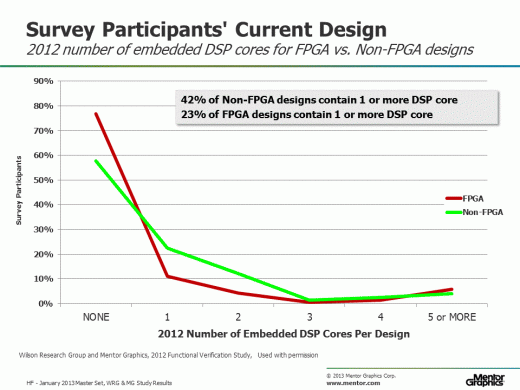

Figure 8. Number of embedded DSP cores

Figure 9 shows the trends in terms of the number of embedded DSP cores for non-FPGA designs. The comparison includes the 2007 Far West Research study (in grey), the 2010 Wilson Research Group study (in blue), and the 2012 Wilson Research Group study (in green).



Figure 9. Trends: Number of embedded DSP core

In my next blog (click here), I’ll present clocking and power trends.

, , , , , ,

@dennisbrophy Tweets

  • Loading tweets...

@dave_59 Tweets

  • Loading tweets...

@HarryAtMentor Tweets

  • Loading tweets...
