Posts Tagged ‘functional verification’

16 April, 2015

Do automated formal apps really help D&V engineers “cross the chasm” and start using formal verification directly? In Part 1 of this case study on Oracle’s “Project RAPID”, the Oracle team’s appetite for using formal verification was whetted by impressive results from the Questa Connectivity Check and Questa Register Check apps. Picking up the story where we left off, award-winning author Ram Narayan explains how success with these automated formal apps inspired the team to try their hands at using formal technology directly with the Questa Property Checking (PropCheck) app for classical model/property checking. Ram writes:

Some of the IP units … were good candidates for formal verification. That’s because it was very reasonable to expect to be able to prove the complete functionality of these units formally. We decided to target these units with the Assurance strategy.”

and

Spurred by the success of applying [the apps], we considered applying formal methods in a bug hunting mode for units that were already being verified with simulation. Unlike Assurance, Bug Hunting doesn’t attempt to prove the entire functionality, but rather targets specific areas where simulation is not providing enough confidence that all corner case bugs have been discovered.”

2015-4-8 page 5 of Oracle Ram N VH article
The results of their assurance and bug hunting strategies speak for themselves: Table 1 in the article reports that the team found 79 bugs with these formal verification techniques!

Given this success with formal, the team gained the confidence to apply formal in more DUT areas where formal would be more effective than simulation – i.e. “using the best tool for the job” as necessary. Indeed, a common thread throughout the whole story is how formal and simulation were often used in tandem to simultaneously leverage the unique strengths of each technology to improve the overall quality of verification. The article’s conclusion begins with this observation:

“Formal verification is a highly effective and efficient approach to finding bugs. Simulation is the only means available to compute functional coverage towards verification closure. In this project we attempted to strike a balance between the two methodologies and to operate within the strengths of each approach towards meeting the projects goals.

The bottom-line: formal has “gone mainstream” in this team’s current and future projects:

“The most significant accomplishment to me is the shift in the outlook of the design team towards formal. According to one designer whose unit was targeted with Bug Hunting, ‘I was initially skeptical about what formal could do. From what I have seen, I want to target my next design first with formal and find most of the bugs.’ … “the time savings and improved design quality that formal verification brings are welcome benefits. We plan to continue to push the boundaries of what is covered by formal in future projects.”

Granted, the road from zero formal to full adoption might not have been quite as smooth as this engaging article describes. Still, their declaration to future usage of formal apps in conjunction with formal property checking – let alone their project’s impressive results – appear to conclusively prove the original thesis.  Namely, once formal’s considerable power and benefits are introduced by a series of formal apps, there is no going back and formal becomes a permanent part of the user’s verification tool kit.

Does Ram’s/Oracle’s journey resonate with you? Have you had the same experience or seen something similar at your employer or clients?  Please share your thoughts in the comments below, or contact me offline.

Until next time, may your coverage be high and your power consumption be low,

Joe Hupcey III

P.S. FYI, the author of the Verification Horizons article described above (and the related award-winning DVCon 2014 poster) was also a co-author of the 2015 DVCon USA Best Paper, 10.1 “I Created the Verification Gap” by Ram Narayan and Tom Symons of Oracle Labs.  Congratulations Ram and Tom!

Reference Links:

Verification Horizons, March 2015, Volume 11, Issue 1:
Evolving the Use of Formal Model Checking in SoC Design Verification
Ram Narayan, Oracle Corp.

https://verificationacademy.com/verification-horizons/march-2015-volume-11-issue-1/Evolving-the-Use-of-Formal-Model-Checking-in-SoC-Design-Verification

—–

DVCon USA, March 2014, 1P.2:
The Future of Formal Model Checking is NOW! Leveraging Formal Methods for RAPID System On Chip Verification, (Poster Presentation Honorable Mention)
Ram Narayan, Oracle Corp.

http://events.dvcon.org/events/proceedings.aspx?id=163-1-P

, , , , , , , , , , , , , , ,

9 April, 2015

One of the biggest developments in the formal verification world in the past several years has been the industry-wide growth of formal-based “apps” — automated applications that leverage formal’s exhaustive verification technology “under the hood” to focus on specific verification tasks well suited to formal algorithms. But do formal apps really help D&V engineers “cross the chasm” and start using formal verification directly?  (Or if you prefer, are apps an effective “Trojan Horse”?)  A recent article in Verification Horizons by Oracle’s Ram Narayan titled “Evolving the Use of Formal Model Checking in SoC Design Verification about the evolution of the verification methodology employed on Oracle’s “Project RAPID” suggests the answer is “yes”.

2015-4-8 front page of Oracle Ram N VH article

In a nutshell, the clear benefits Ram’s team received from formal apps inspired them to try their hand at formal model checking; and their results exceeded all expectations. I recommend you read the article in its entirety because it’s a great real-world case study; rich with anecdotes from the front-line engineer himself. (Indeed, this article was inspired by Ram’s award winning DVCon 2014 poster, but I digress) But for the purposes of this post, allow me to focus exclusively on the highlights pertaining to the “crossing the chasm” thesis. Consider the following excerpts.

* First, they started from scratch:

“At the outset of the project, there were no specific plans to use formal verification on RAPID. We did not have any infrastructure in place for running formal tools, and neither did we have anyone on the team with any noteworthy experience using these tools.”

* The first app they tried exceeded all expectations: Like many customers, Oracle got their feet wet with formal-driven SoC connectivity checking. And like 100% of Questa Connectivity Check app customers, they came away impressed:

“Our goal was to catch trivial design errors through formal methods without having to rely on lengthy and in some cases, random SoC simulations. Given our modest expectations at the outset, we would have been satisfied if we just verified these SoC connectivity checks with formal tools.  … SoC Connectivity checks were written to verify the correct connectivity between critical SoC signals like interrupts, events and other control/datapath signals. These checks are trivial to define and are of high value. Proving these connections saved us significant cycles in SoC simulations.

This is not just a gut feeling on the author’s part: the bottom row of Table 2 in the article (showing the Questa Connectivity Check app cutting the schedule by 66%) backs-up the above quote with real project data.

2015-4-8 Table 2 Oracle Ram N VH article

Article Table 2: Formal Verification Time Savings on Oracle’s Project RAPID – formal-based connectivity verification with the Questa Connectivity Check app delivers 66% schedule savings


* Another app is tried, and it’s also wildly successful:
the Questa Register Check app was the next formal app to be applied. Not only did it take care of the immediate control&status register verification task, but it also enabled more effective downstream verification:

“The Register Access Verification established controllability and observability of the registers in the unit from its interface. The IP core logic verification could now safely use the control registers as inputs to properties on the rest of the logic they drive. In addition to these registers, we chose a few internal nodes in the design as observation and control points in our properties. These points gave us additional controllability and observability to the design and reduced the complexity of the cones of logic being analyzed around them. We proved the correctness (observability) of these points prior to enjoying the benefits of using them (controllability) for other properties. This approach made it easier to write properties on the entire unit without any compromise on the efficacy of the overall unit verification.”

At this point in the story, the Oracle team is still confining their use of formal to the stable of available automated formal apps. However, as we’ll see in Part 2 of this case study, this success bred curiosity in the underlying technology …

Until next time, may your coverage be high and your power consumption be low,

Joe Hupcey III

P.S. FYI, the author of the Verification Horizons article described above (and the related award-winning DVCon 2014 poster) was also a co-author of the 2015 DVCon USA Best Paper, 10.1 “I Created the Verification Gap” by Ram Narayan and Tom Symons of Oracle Labs.  Congratulations Ram and Tom!

Reference Links:

Verification Horizons, March 2015, Volume 11, Issue 1:
Evolving the Use of Formal Model Checking in SoC Design Verification
Ram Narayan, Oracle Corp.

https://verificationacademy.com/verification-horizons/march-2015-volume-11-issue-1/Evolving-the-Use-of-Formal-Model-Checking-in-SoC-Design-Verification

—–

DVCon USA, March 2014, 1P.2:
The Future of Formal Model Checking is NOW! Leveraging Formal Methods for RAPID System On Chip Verification, (Poster Presentation Honorable Mention)
Ram Narayan, Oracle Corp.

http://events.dvcon.org/events/proceedings.aspx?id=163-1-P

, , , , , , , , , , , , , , ,

1 April, 2015

FPGA Effort Verification Trends (Continued)

This blog is a continuation of a series of blogs related to the 2014 Wilson Research Group Functional Verification Study (click here). In my previous blog (click here), I focused on the controversial topic of effort spent in FPGA verification. This blog continues that discussion. I stated in my previous blog that I don’t believe there is a simple answer to the question, “how much effort was spent on verification in your last FPGA project?” I believe that it is necessary to look at multiple data points to truly get a sense of the real effort involved in verification today. So, let’s look at a few additional findings from the study.

Time FPGA designers spend in verification

For projects that have a separation of teams (i.e., design engineers and verification engineers), it’s important to note that FPGA verification engineers are not the only project members involved in functional verification. FPGA design engineers spend a significant amount of their time in verification too, as shown in Figure 1.

2014-WRG-BLOG-FPGA-3-1

Figure 1. Average (mean) time FPGA design engineers spend in design vs. verification.

You might note (on average) that FPGA design engineers actually spend slightly more time doing verification than design. We are not showing trends here since we have insufficient data related to the questions for FPGA designs from our previous study. We anticipate being able to show trends after our next study (currently scheduled for 2016).

Even if the FPGA project has a separation of teams, the designers are still involved in the verification process, ranging from:

  • Small sandbox testing to explore various aspects of the implementation
  • Full functional testing of IP blocks and SoC integration
  • Debugging verification problems identified by a separate verification team

In fact, getting a better understanding of exactly where FPGA designers spend their time has led us to conduct a series of follow-on discussions with various FPGA projects from various market segments. Through this process we have learned a concern by many project managers related to the increase amount of debugging time spent on a project (both pre-lab and lab debugging time). This is one area of FPGA verification that we plan to continue to explore through a series of in-depth discussions with multiple FPGA projects around the world.

Percentage of time FPGA verification engineers spends in various task

Next, let’s look at the mean time FPGA verification engineers spend in performing various tasks related to their specific project. You might note that verification engineers spend most of their time in debugging. Ideally, if all the tasks were optimized, then you would expect this. Yet, unfortunately, the time spent in debugging can vary significantly from project-to-project, which presents scheduling challenges for managers during a project’s verification planning process.

2014-WRG-BLOG-FPGA-3-2

Figure 2. Average (mean) time verification engineers spend in various task

In our 2012 study we found that FPGA verification engineers spent about 37% of their time involved in debugging task. There was a 16 percent increase in the amount of time spent in debugging between 2012 and 2014. Hence, the data suggest that debugging effort is increasing for both FPGA engineers.

In my next blog (click here) I present our study findings in terms of FPGA schedules, iterations in the lab, and classification of functional bugs.

Quick links to the 2014 Wilson Research Group Study results

, , ,

11 March, 2015

FPGA Verification Effort Trends

This blog is a continuation of a series of blogs related to the 2014 Wilson Research Group Functional Verification Study (click here).  In my previous blog (click here), I focused on FPGA design trends. In this blog, I present findings from our study related to the effort spent in verification.

Directly asking study participants how much effort they spend in verification will not work. The reason is that it’s hard to find a paper or article on verification that doesn’t start with the phrase: “Seventy percent of a project’s effort is spent in verification…” In other words, the industry is already biased to respond with this effort value. Yet, there are really no creditable references to quantify this value.

I don’t believe that there is a simple answer to the question, “How much effort was spent on verification in your last project?” In fact, I believe that it is necessary to look at multiple data points derived from multiple questions to truly get a sense of effort spent in verification. And that’s what we did in our functional verification study.

Total FPGA Project Time Spent in Verification

To try to assess the effort spent in verification, let’s begin by looking at one data point, which is the total project time spent in verification. Figure 1 shows the trends in total percentage of FPGA project time spent in verification by comparing the 2012 Wilson Research Group study (in dark blue), and the 2014 Wilson Research Group study (in light blue).

Figure 1. Percentage of FPGA project time spent in verification

Between the years 2012 and 2014 the industry did see a seven percent increase in the average time an FPGA project spends in verification. Historically, FPGA projects have spent less time in verification than ASIC/IC projects. The FPGA project strategy has traditionally been to get to the lab as soon as possible, and then iterate on issues in the lab. In a future blog I’ll show data that indicates this strategy does not necessarily yield good results in terms of meeting project schedule or quality objectives. Also, this lab-focused approach to FPGA verification becomes less effective as FPGA complexity increases.

Peak Number of Design and Verification Engineers

Perhaps one of the biggest challenges in design and verification today is identifying solutions to increase productivity and control engineering headcount. To illustrate the need for productivity improvement, we discuss the trend in terms of increasing engineering headcount for FPGA projects. Figure 2 shows the mean peak number of design and verification engineers working on an FPGA project. Again, this is an industry average since some projects have many engineers while other projects have few.

Figure 2. Mean peak number of engineers working on an FPGA project

You can see that the compounded annual growth rate (CAGR) for the peak number of FPGA design engineers between 2012 and 2014 was 4.9 percent, while the CAGR for the peak number of FPGA verification engineers was 20.9 percent. This huge demand for verification engineers on FPGA projects is one indicator of growing verification complexity in FPGA designs. Also, note that the ratio of design engineers versus verification engineers is approaching 1-to-1. This similar trend happened on traditional ASIC/IC designs in 2012.

In my next blog (click here) I focus on the time that FPGA design and verification engineers spends in various task.

Quick links to the 2014 Wilson Research Group Study results

, ,

23 February, 2015

It’s my favorite time of year again—DVCon!  And I believe that the DVCon 2015 technical program committee has put together one of the technically best DVCon’s in years. In this blog I plan on highlighting a few DVCon events that you might want to put on your calendar.

2015-DVCon

First, at this year’s conference the Verification Academy has a dedicated booth (#301), and I hope you stop by to say hello to myself, my friend Tom Fitzpatrick, and an amazing lineup of other Verification Academy subject matter experts.

Next, on Wednesday morning March 4 I have the honor of participating on a verification panel, titled: “Art of Science.” Here, my fellow panelist and I will debate the issue that verification today is considered by some to be more of an art than a science—and one which is perceived as difficult to master. To learn my position on this topic, you’ll have to stop by!

Also on Wednesday at the Mentor sponsored lunch, my colleague Steve Bailey and I have put together both an informative and entertaining talk we’ve title: “From Tightly Coupled (Loosely Bolted) to Verification Convergence.” Here, we discuss the state of verification past, present and future while examining the results from our recently industry world-wide study, which I started blogging about a few weeks ago (click here for more details). Our talk will examine how advanced techniques are taking hold in mainstream design and provide insights on the recent convergence of verification solutions to meet today’s growing challenges.

Finally, there are two tutorials I’d like to encourage you to attend while at DVCon this year:

  1. Advanced, High-Throughput Debug from Architectural Modeling Through Post-Silicon SoC Validation (click here for more details)
  2. Dead or Alive: Using Automated Formal Techniques to Characterize Dead Code, Reveal Paths to Hit Uncovered States, and Reach Coverage Closure Faster (click here for more details)

I look forward to meeting you at DVCon 2015!

, , ,

8 February, 2015

FPGA Design Trends

In my previous blog, I introduced the 2014 Wilson Research Group Functional Verification Study (click here). The objective of my previous blog was to provide an overview on our large, worldwide industry study. The key findings from this study will be presented in a set of upcoming blogs. In this blog, I present trends related to various aspects of FPGA design to illustrate growing design complexity.

Let’s begin by examining embedded processor trends targeted at a general FPGA implementation. Our 2014 study found that 56% of all FPGA designs contained one or more embedded processors, as shown in Figure 1. Although we did not see an overall growth in the number of FPGAs containing one or more embedded processors between 2012 and 2014, we did see an increase in the number of FPGA projects creating designs containing more than one embedded processor.

2014-WRG-BLOG-FPGA-1-1

Figure 1. Number of embedded processors in FPGA trends

SoC class designs (i.e., designs containing embedded processors) add a new layer of verification complexity to the verification process that did not exist with traditional non-SoC class designs due to hardware and software interactions, new coherency architectures, and the emergence of complex network-on-a-chip interconnect.

In addition to embedded processors targeted at general FPGA class of designs, there has been a recent emergence of specific programmable SoC FPGA implementations, such as: Xilinx’s Zynq, Altera’s Arria/Cydone, and Microsemi’s SmarFusion. Figure 2 shows the adoption trends for these programmable SoC FPGAs, which you can see grew by over 93 percent between 2012 and 2014. Keep in mind that this trend data does not represent volume production—it represents the number of FPGA projects that are creating designs targeted at a programmable SoC class of FPGA.

2014-WRG-BLOG-FPGA-1-3

Figure 2. Type of FPGA implementation trends

As the industry moves to SoC class designs, regardless of targeted FPGA implementation, FPGA projects are starting to increase their adoption of industry standard on-chip bus protocols—versus proprietary bus protocols. Figure 3 shows the current adoption of AMBA and other on-chip bus protocols for FPGA designs as identified by our new study. Note, the reason we are not showing trends here is that the 2012 study did not separate out the various AMBA protocols, which is something we decided to do for our 2014 study. Hence, we cannot do an apples-to-apples comparison between 2012 and 2014 for FPGA on-chip bus protocol adoption.

2014-WRG-BLOG-FPGA-1-3a

Figure 3. FPGA on-chip bus protocol adoption

Another aspect of SoC class design is the emergence of IP-based design practices, which is fundamental for improving design productivity. Figure 4 shows FPGA design composition trends—and we see that there has been a declined in new logic created by FPGA project teams. At the same time we see an increase in the adoption of both internally developed and externally acquired IP.

2014-WRG-BLOG-FPGA-1-5

Figure 4. FPGA design composition trends

In my next blog (click here), I’ll focus on verification effort trends related to FPGA designs.

Quick links to the 2014 Wilson Research Group Study results

,

21 January, 2015

This blog is a continuation of a series of blogs that present the highlights from the 2014 Wilson Research Group Functional Verification Study (for a background on the study, click here).

In this blog I discuss the issue of study bias, and what we did to address these concerns.

MINIMIZING STUDY BIAS

When architecting a study, three main concerns must be addressed to ensure valid results: sample validity bias, non-response bias, and stakeholder bias. Each of these concerns is discussed in the following sections, as well as the steps we took to minimize these bias concerns.

Sample Validity Bias

To ensure that a study is unbiased, it’s critical that every member of a studied population have an equal chance of participating. An example of a biased study would be when a technical conference surveys its participants. The data might raise some interesting questions, but unfortunately, it does not represent members of the population that were unable to participant in the conference. The same bias can occur if a journal or online publication limits its surveys to only its subscribers.

A classic example of sample validity bias is the famous Literary Digest poll in the 1936 United States presidential election, where the magazine surveyed over two million people. This was a huge study for this period in time. The sampling frame of the study was chosen from the magazine’s subscriber list, phone books, and car registrations. However, the problem with this approach was that the study did not represent the actual voter population since it was a luxury to have a subscription to a magazine, or a phone, or a car during The Great Depression. As a result of this biased sample, the poll inaccurately predicted that Republican Alf Landon versus the Democrat Franklin Roosevelt would win the 1936 presidential election.

For our study, we carefully chose a broad set of independent lists that, when combined, represented all regions of the world and all electronic design market segments. We reviewed the participant results in terms of market segments to ensure no segment or region representation was inadvertently excluded or under-represented.

Non-Response Bias

Non-response bias in a study occurs when a randomly sampled individual cannot be contacted or refuses to participate in a survey. For example, spam and unsolicited mail filters remove an individual from the possibility of receiving an invitation to participate in a study, which can bias results. It is important to validate sufficient responses occurred across all lists that make up the sample frame. Hence, we reviewed the final results to ensure that no single list of respondents that made up the sample frame dominated the final results.

Another potential non-response bias is due to lack of language translation, which we learned during our 2012 study. The 2012 study generally had good representation from all regions of the world, with the exception of an initially very poor level of participation from Japan. To solve this problem, we took two actions:

  1. We translated both the invitation and the survey into Japanese.
  2. We acquired additional engineering lists directly from Japan to augment our existing survey invitation list.

This resulted in a balanced representation from Japan. Based on that experience, we took the same approach to solve the language problem for the 2014 study.

Stakeholder Bias

Stakeholder bias occurs when someone who has a vested interest in survey results can complete an online study survey multiple times and urge others to complete the survey in order to influence the results. To address this problem, a special code was generated for each study participation invitation that was sent out. The code could only be used once to fill out the survey questions, preventing someone from taking the study multiple times or sharing the invitation with someone else.

2010 Study Bias

While architecting the 2012 study, we did discover a non-response bias associated with the 2010 study. Although multiple lists across multiple market segments and across multiple regions of the world were used during the 2010 study, we discovered that a single list dominated the responses, which consisted of participants who worked on more advanced projects and whose functional verification processes tend to be mature. Hence, for this series of blogs we have decided not to publish any of the 2010 results as part of verification technology adoption trend analysis.

The 2007, 2012, and 2014 studies were well balance and did not exhibit the non-response bias previously described for the 2010 data. Hence, we have confidence in talking about general industry trends presented in this series of blogs.

Quick links to the 2014 Wilson Research Group Study results

,

21 January, 2015

This is the first in a series of blogs that presents the findings from our new 2014 Wilson Research Group Functional Verification Study. However, unlike my previous Wilson Research Group functional verification study blogs, which focused on the ASIC/IC market, I plan to begin this set of blogs with an exclusive focus on FPGA trends. Why? For the following reasons:

  1. Unlike the traditional ASIC/IC market, there has historically been very few studies published on FPGA functional verification trends. We started studying the FPGA market segment back in the 2010 study, and we now have collected sufficient data to confidently present industry trends related to this market segment.
  2. Today’s FPGA designs have grown in complexity—and many now resemble complete systems. The task of verifying SoC-class designs is daunting, which has forced many FPGA projects to mature their verification process due to rising complexity. The FPGA-focused data I present in this set of blogs will support this claim.

My plan is to release the ASIC/IC functional verification trends through a set of blogs after I finish presenting the FPGA trends.

Introduction

In 2002 and 2004, Collett International Research, Inc. conducted its well-known ASIC/IC functional verification studies, which provided invaluable insight into the state of the electronic industry and its trends in design and verification at that point in time. However, after the 2004 study, no additional Collett studies were conducted, which left a void in identifying industry trends. To address this dearth of knowledge, four studies were commissioned by Mentor Graphics in 2007, 2010, 2012, and 2014, which focused on functional verification. These were world-wide, double-blind, functional verification studies, covering all electronic industry market segments. To our knowledge, the 2014 study was the largest functional verification study ever conducted. This set of blogs presents the findings from our 2014 study and provides invaluable insight into the state of the electronic industry today in terms of both design and verification trends.

Study Background

Our study was modeled after the original 2002 and 2004 Collett International Research, Inc. studies. In other words, we endeavored to preserve the original wording of the Collett questions whenever possible to facilitate trend analysis. To ensure anonymity, we commissioned Wilson Research Group to execute our study. The purpose of preserving anonymity was to prevent biasing the participants’ responses. Furthermore, to ensure that our study would be executed as a double-blind study, the compilation and analysis of the results did not take into account the identity of the participants.

For the purpose of our study we used a multiple sampling frame approach that was constructed from eight independent lists that we acquired. This enabled us to cover all regions of the world—as well as cover all relevant electronic industry market segments. It is important to note that we decided not to include our own account team’s customer list in the sampling frame. This was done in a deliberate attempt to prevent biasing the final results. My next blog in this series will discuss other potential bias concerns when conducting a large industry study and describe what we did to address these concerns.

After data cleaning the results to remove inconsistent or random responses (e.g., someone who only answered “a” on all questions), the final sample size consisted of 1886 eligible participants (i.e., n=1886). To put this figure in perspective, the 2004 Collett study sample size consisted of 201 eligible participants.

Unlike the 2002 and 2004 Collett IC/ASIC functional verification studies, which focused only on the ASIC/IC market segment, our studies were expanded in 2010 to include the FPGA market segment. We have partitioned the analysis of these two different market segments separately, to provide a clear focus on each. One other difference between our studies and the Collett studies is that our study covered all regions of the world, while the original Collett studies were conducted only in North America (US and Canada). We have the ability to compile the results both globally and regionally, but for the purpose of this set of blogs I am presenting only the globally compiled results.

Confidence Interval

All surveys are subject to sampling errors. To quantify this error in probabilistic terms, we calculate a confidence interval. For example, we determined the overall margin of error for our study to be ±2.19% at a 95% confidence interval. In other words, this confidence interval tells us that if we were to take repeated samples of size n=1886 from a population, 95% of the samples would fall inside our margin of error ±2.19%, and only 5% of the samples would fall outside.

Study Participants

This section provides background on the makeup of the study.

Figure 1 shows the percentage of overall study participants by market segment.

2014-WRG-BLOG-P-1

Figure 1: Study participants by market segment

Figure 2 shows the percentage of overall study eligible participants by their job description. An example of eligible participant would be a self-identified design or verification engineer, or engineering manager, who is actively working within the electronics industry. Overall, design and verification engineers accounted for 60 percent of the study participants.

2014-WRG-BLOG-P-2

Figure 2: Study participants job title description

Before I start presenting the findings from our 2014 functional verification study, I plan to discuss in my next blog (click here) general bias concerns associated with all survey-based studies—and what we did to minimize these concerns.

Quick links to the 2014 Wilson Research Group Study results

,

14 January, 2015

“Who Knew?” about verification IP (VIP), was the theme of a recent DeepChip post by John Cooley on December 18.  More specifically the article states, “Who knew VIP was big and that Wally had a good piece of it?”  We knew.

We knew that ASIC and FPGA design engineers can choose to buy design IP from several alternative sources or build their own, but that does not help with the problem of verification.  We knew that you don’t really want to rely on the same source that designed your IP, to test it.  We knew that you don’t want to write and maintain bus functional models (BFMs) or more complete VIP for standard protocols.  Not that you couldn’t, but why would you if you don’t have to?

We also knew that verification teams want easy-to-use VIP that is built on a standard foundation of SystemVerilog, compliant with a protocol’s specification, and is easily configurable to your implementation.  That way it integrates into your verification environment just as easily as if you had built it yourself.

Leading design IP providers such as ARM®, PLDA, and Northwest Logic knew that Mentor Graphics’ VIP is built on standards, is protocol compliant, and is easy to use.  In fact you can read more about what Jim Wallace, systems and software group director at ARM; Stephane Hauradou, CTO of PLDA; and Brian Daellenbach, president of Northwest Logic; have to say about Mentor Graphics’ recently introduced EZ-VIP technology for PCIe 4.0 (at this website http://www.mentor.com/company/news/mentor-verification-ip-pcie-4 ), and why they know that their customers can rely on it as well.

Verification engineers knew, too.  You can read comments from many of them (at Cooley’s website http://www.deepchip.com/items/dac14-06.html ), about their opinions on VIP.  In addition, Mercury Systems also knew.  “Mentor Graphics PCIe VIP is fully compliant with the PCIe protocol specification and with UVM coding guidelines. We found that we could drop it into our existing environment and get it up and running very quickly”, said Nick Solimini, Consulting DV Engineer at Mercury Systems. “Mentor’s support for their VIP is excellent. All our technical questions were answered promptly so we were able to be productive throughout the project”.

So, now you know,  Mentor Graphics’ Questa VIP is built on standard SV UVM, is specification compliant, is easy to get up and running and is an integral part of many successful verification environments today.  If you’d like to learn more about Questa VIP and Mentor Graphics’ EZ-VIP technology, send me an email, and I’ll let you in on what (thanks to Cooley and our customers) is no longer the best kept secret in verification.  Who knew?

, , , , , , , ,

17 November, 2014

Few verification tasks are more challenging than trying to achieve code coverage goals for a complex system that, by design, has numerous layers of configuration options and modes of operation.  When the verification effort gets underway and the coverage holes start appearing, even the most creative and thorough UVM testbench architect can be bogged down devising new tests – either constrained-random or even highly directed tests — to reach uncovered areas.

armpaper
At the recent ARM® Techcon, Nguyen Le, a Principal Design Verification Engineer in the Interactive Entertainment Business Unit at Microsoft Corp. documented a real world case study on this exact situation.  Specifically, in the paper titled “Advanced Verification Management and Coverage Closure Techniques”, Nguyen outlined his initial pain in verification management and improving cover closure metrics, and how he conquered both these challenges – speeding up his regression run time by 3x, while simultaneously moving the overall coverage needle up to 97%, and saving 4 man-months in the process!  Here are the highlights:

* DUT in question
— SoC with multi-million gate internal IP blocks
— Consumer electronics end-market = very high volume production = very high cost of failure!

* Verification flow
— Constrained-random, coverage driven approach using UVM, with IP block-level testbenches as well as  SoC level
— Rigorous testplan requirements tracking, supported by a variety of coverage metrics including functional coverage with SystemVerilog covergroups, assertion coverage with SVA covers, and code coverage on statements, Branches, Expressions, Conditions, and FSMs

* Sign-off requirements
— All test requirements tracked through to completion
— 100% functional, assertion and code coverage

* Pain points
— Code coverage: code coverage holes can come from a variety of expected and unforeseen sources: dead code can be due to unused functions in reused IP blocks, from specific configuration settings, or a bug in the code.  Given the rapid pace of the customer’s development cycle, it’s all too easy for dead code to slip into the DUT due to the frequent changes in the RTL, or due to different interpretations of the spec.  “Unexplainably dead” code coverage areas were manually inspected, and the exclusions for properly unreachable code were manually addressed with the addition of pragmas.  Both procedures were time consuming and error prone
— Verification management: the verification cycle and the generated data were managed through manually-maintained scripting.  Optimizing the results display, throughput, and tool control became a growing maintenance burden.

* New automation
— Questa Verification Manager: built around the Unified Coverage Database (UCDB) standard, the tool supports a dynamic verification plan cross-linked with the functional coverage points and code coverage of the DUT.  In this way the dispersed project teams now had a unified view which told them at a glance which tests were contributing the most value, and which areas of the DUT needed more attention.  In parallel, the included administrative features enabled efficient control of large regressions, merging of results, and quick triage of failures.

— Questa CoverCheck: this tool reads code coverage results from simulation in UCDB, and then leverages formal technology under-the-hood to mathematically prove that no stimulus could ever activate the code in question. If it’s OK for a given block of code to be dead due to a particular configuration choice, etc., the user can automatically generate wavers to refine the code coverage results.  Additionally, the tool can also identify segments of code that, though difficult to reach, might someday be exercised in silicon. In such cases, CoverCheck helps point the way to testbench enhancements to better reach these parts of the design.

— The above tools used in concert (along with Questasim) enabled a very straightforward coverage score improvement process as follows:
1 – Run full regression and merge the UCDB files
2 – Run Questa CoverCheck with the master UCDB created in (1)
3 – Use CoverCheck to generate exclusions for “legitimate” unreachable holes, and apply said exclusions to the UCDB
4 – Use CoverCheck to generate waveforms for reachable holes, and share these with the testbench developer(s) to refine the stimulus
5 – Report the new & improved coverage results in Verification Manager

* Results
— Automation with Verification Manager enabled Microsoft to reduce the variation of test sequences from 10x runtime down to a focused 2x variation.  Additionally, using the coverage reporting to rank and optimize their tests, they increased their regression throughput by 3x!
— With CoverCheck, the Microsoft engineers improved code coverage by 10 – 15% in most hand-coded RTL blocks, saw up to 20% coverage improvement for auto-generated RTL code, and in a matter of hours were able to increase their overall coverage number from 87% to 97%!
— Bottom-line: the customer estimated that they saved 4 man-months on one project with this process

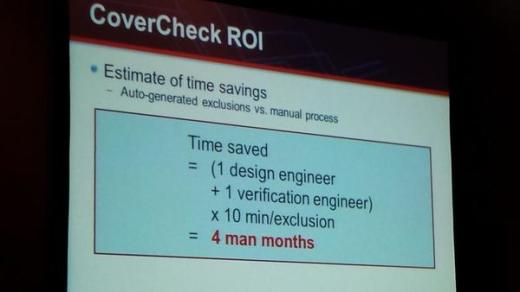

2014 MSFT presentation at ARM Techcon -- cover check ROI

Taking a step back, success stories like this one, where automated, formal-based applications leverage the exhaustive nature of formal analysis to tame once intractable problems (which require no prior knowledge of formal or assertion-based verification), are becoming more common by the day.  In this case, Mentor’s formal-based CoverCheck is clearly the right tool for this specific verification need, literally filling in the gaps in a traditional UVM testbench verification flow.  Hence, I believe the overall moral of the story is a simple rule of thumb: when you are grappling with a “last mile problem” of unearthing all the unexpected, yet potentially damaging corner cases, consider a formal-based application as the best tool for job.  Wouldn’t you agree?

Joe Hupcey III

Reference links:

Direct link to the presentation slides: https://verificationacademy.com/Advanced-Verification-Management-Presentation

ARM Techcon 2014 Proceedings: http://www.armtechcon.com/

Official paper citation:
Advanced Verification Management and Coverage Closure Techniques, Nguyen Le, Microsoft; Harsh Patel, Roger Sabbagh, Darron May, Josef Derner, Mentor Graphics

, , , , , , , , , , ,

@dennisbrophy Tweets

  • Loading tweets...

@dave_59 Tweets

  • Loading tweets...

@jhupcey Tweets

  • Loading tweets...
